Sandvik Coromant

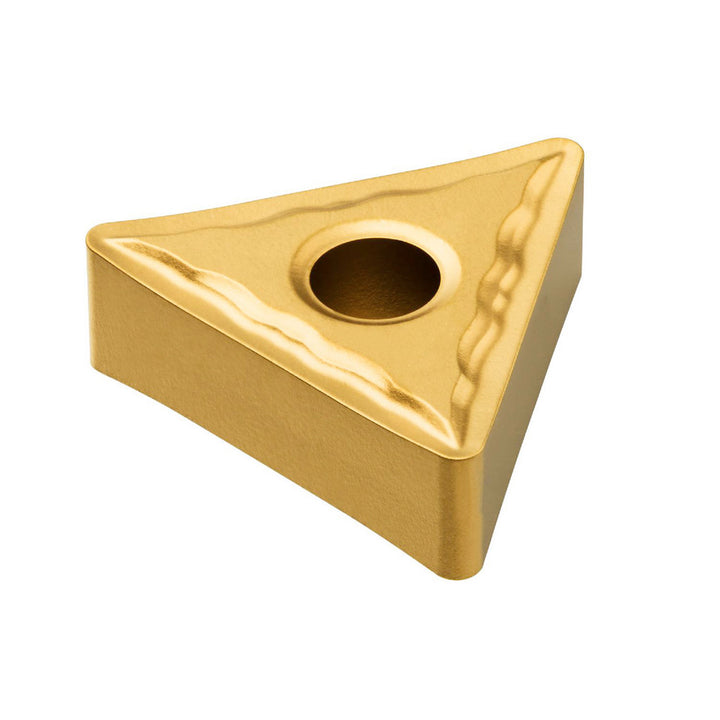

TNMG 22 04 04-MF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754157
MFR# 5754157ISO/ANSI# TNMG 22 04 04-MF 235Series T-Max P
$21.56List $27.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754157 is a TNMG 22 04 04-MF 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8503
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 04-MF 235
Length range0.7000 - 10.0000
Manufacturer grade235
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
