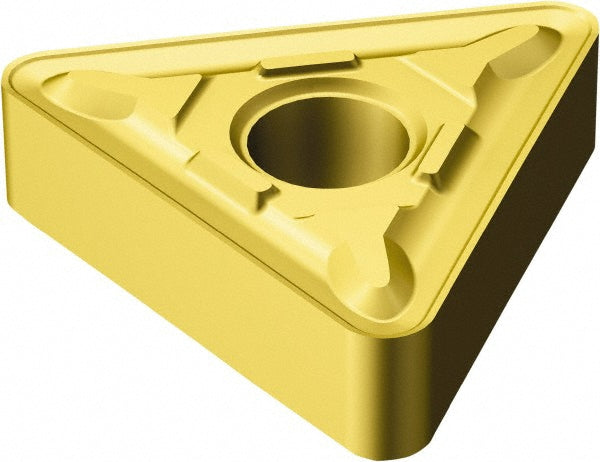

TNMG 22 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5754248

Sandvik Coromant

TNMG 22 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5754248

MFR# 5754248ISO/ANSI# TNMG220408Series T-Max P

$22.15List $28.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade2035
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5754248 is a TNMG 22 04 08-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2032
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-MR 2035
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number5754248
Manufacturer grade2035
Maximum depth of cut0.8346
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
