Sandvik Coromant

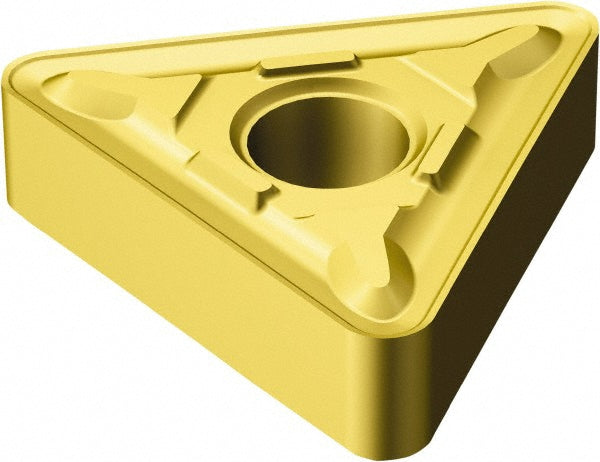

TNMG220412MR2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5754424
MFR# 5754424ISO/ANSI# TNMG220412Series T-Max P
$24.99List $31.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5754424 is a TNMG220412MR2035 carbide indexable insert, grade 2035, TiAlN coated.
Specifications
Ansi insert codeTNMG433
Ansi size code433
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2032
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412MR2035
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number5754424
Manufacturer grade2035
Maximum depth of cut0.8189
Relief angle0
Side clearanceNegative
Tolerance codeM
