Sandvik Coromant

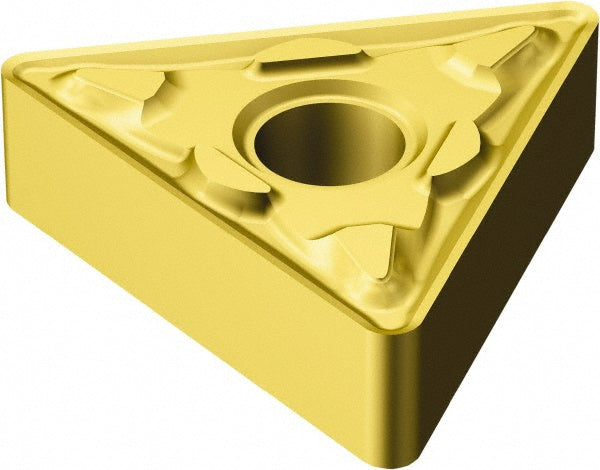

TNMG 22 04 12-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754466
MFR# 5754466ISO/ANSI# TNMG 22 04 12-MM 2025Series T-Max P
$21.02List $26.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754466 is a TNMG 22 04 12-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8188
Insert materialCarbide
Insert shapeTriangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 12-MM 2025
Length range0.7000 - 10.0000
Manufacturer grade2025
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
