Sandvik Coromant
TNMG 27 06 08-MR 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754548
MFR# 5754548ISO/ANSI# TNMG 27 06 08-MR 235
$36.71List $47.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description

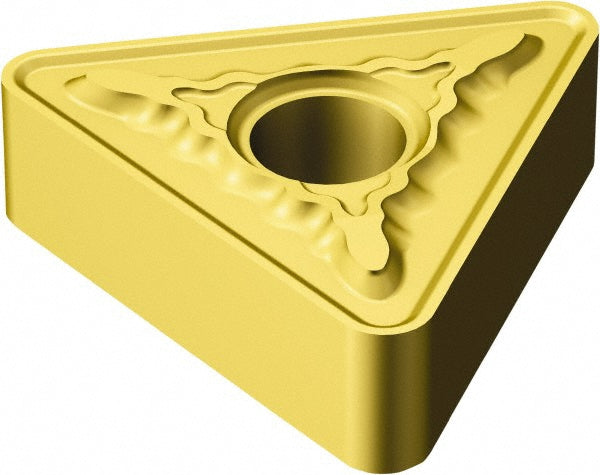

The Sandvik Coromant 5754548 is a TNMG 27 06 08-MR 235 carbide indexable insert, grade 235, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.2500
Included angle60
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length1.0510
Insert materialCarbide
Insert shapeTriangle
Insert size code542
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG 27 06 08-MR 235
Length range0.7000 - 10.0000
Manufacturer grade235
Relief angle0
Tolerance codeM
