Sandvik Coromant

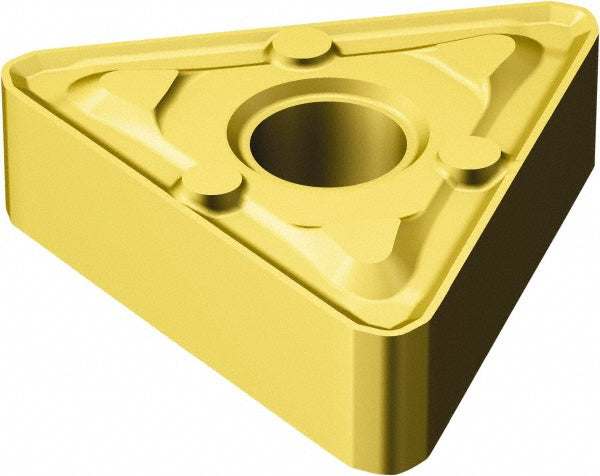

TNMX 16 04 08-WMX 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5754840
MFR# 5754840ISO/ANSI# TNMX 16 04 08-WMX 2015
$18.86List $24.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754840 is a TNMX 16 04 08-WMX 2015 carbide indexable insert, grade 2015, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 16 04 08-WMX 2015
Length range0.6000 - 0.6500
Manufacturer grade2015
Relief angle0
Tolerance codeM
