Sandvik Coromant

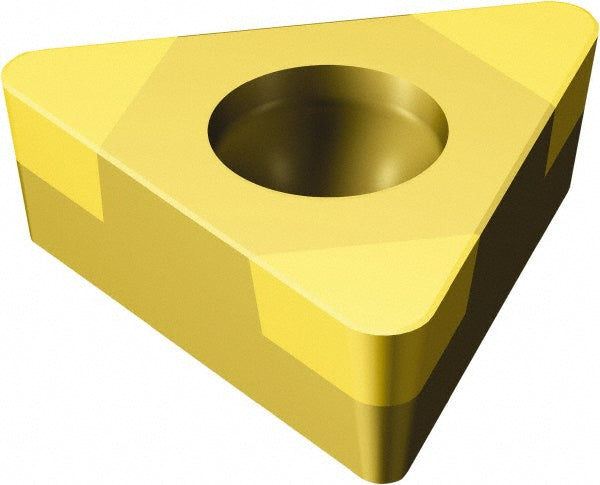

TPGW110304S01020F7015 Cubic Boron Nitride (CBN) Insert, Grade 7015, TiN - Sandvik Coromant 5754874
MFR# 5754874ISO/ANSI# TPGW110304S01020F7015Series CoroTurn 111
$111.16List $142.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade7015
MaterialCubic Boron Nitride (CBN)
CoatingTiN
Description
The Sandvik Coromant 5754874 is a TPGW110304S01020F7015 cubic boron nitride (cbn) indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerW
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleER Treated; Negative Land
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCubic Boron Nitride (CBN)
Insert shapeTriangle
Insert size code221
Insert styleTPGW
Insert thickness in1/8
Iso codeTPGW110304S01020F7015
Length range0.4000 - 0.5000
Manufacturers catalog number5754874
Manufacturer grade7015
Maximum depth of cut0.0709
Relief angle11
Tolerance codeG
