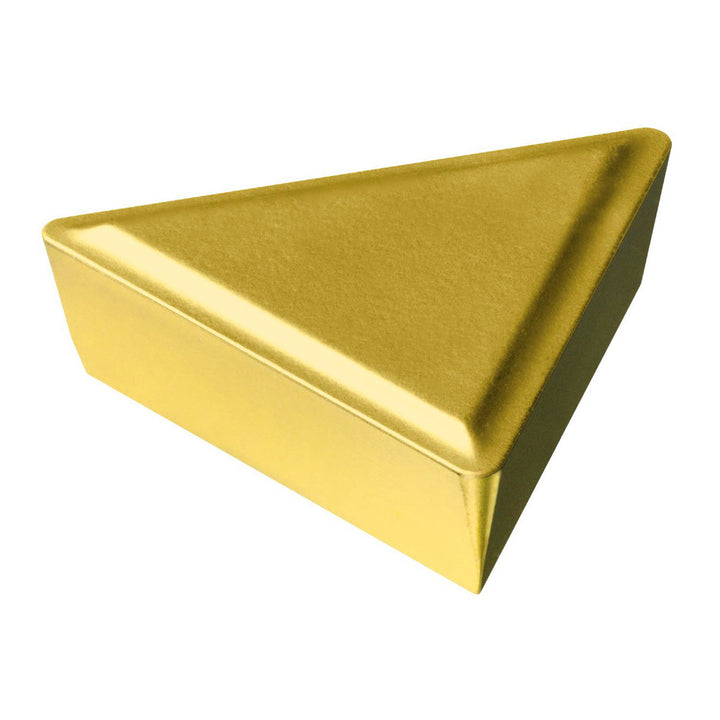

TPMR 16 03 08 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754904

Sandvik Coromant

TPMR 16 03 08 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754904

MFR# 5754904ISO/ANSI# TPMR 16 03 08 2025Series T-Max S

$20.70List $26.08 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5754904 is a TPMR 16 03 08 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 16 03 08 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
