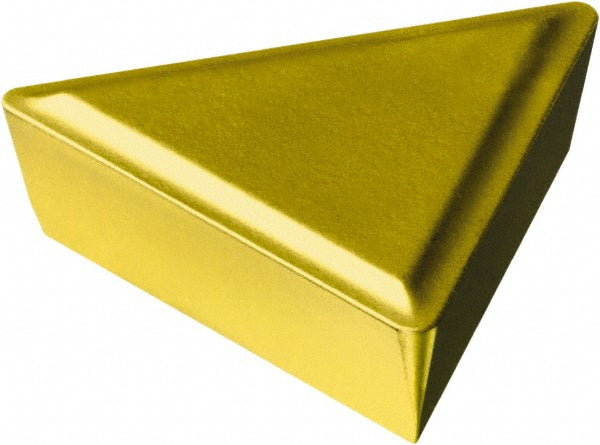

TPMR 16 03 08 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754908

Sandvik Coromant

TPMR 16 03 08 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754908

MFR# 5754908ISO/ANSI# TPMR160308

$16.13List $20.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade235
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5754908 is a TPMR 16 03 08 235 carbide indexable insert, grade 235, TiCN coated.

Specifications

Ansi insert codeTPMR322
Ansi size code322
Chip breaker53
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6180
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 16 03 08 235
Iso insert codeTPMR160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturer grade235
Relief angle11
Side clearancePositive
Tolerance codeM
