Sandvik Coromant
TPMT 11 03 04-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755076
MFR# 5755076ISO/ANSI# TPMT 11 03 04-PF 5015
$14.07List $18.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade5015
MaterialCarbide
Description

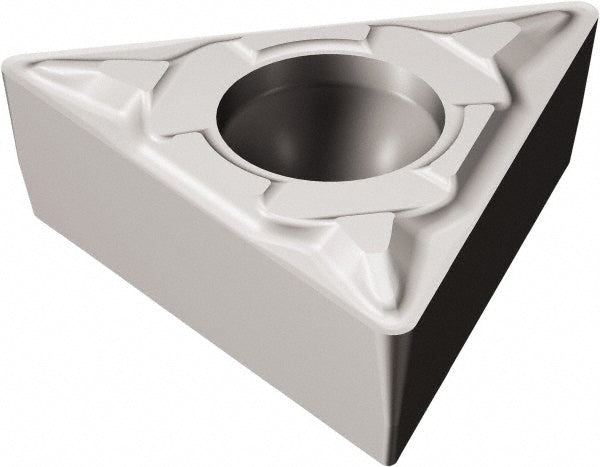

The Sandvik Coromant 5755076 is a TPMT 11 03 04-PF 5015 carbide indexable insert, grade 5015.
Specifications
Chip breakerT
Clearance codeP
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4173
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT 11 03 04-PF 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Relief angle11
Tolerance codeM
