Sandvik Coromant

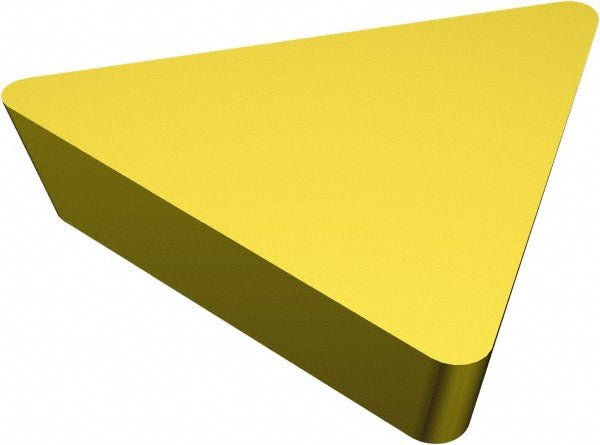

TPUN1603082025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755151
MFR# 5755151ISO/ANSI# TPUN1603082025Series T-Max
$14.95List $19.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755151 is a TPUN1603082025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerN
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPUN
Insert thickness in1/8
Iso codeTPUN1603082025
Length range0.6000 - 0.6500
Manufacturers catalog number5755151
Manufacturer grade2025
Maximum depth of cut0.6181
Relief angle11
Tolerance codeU
