Sandvik Coromant

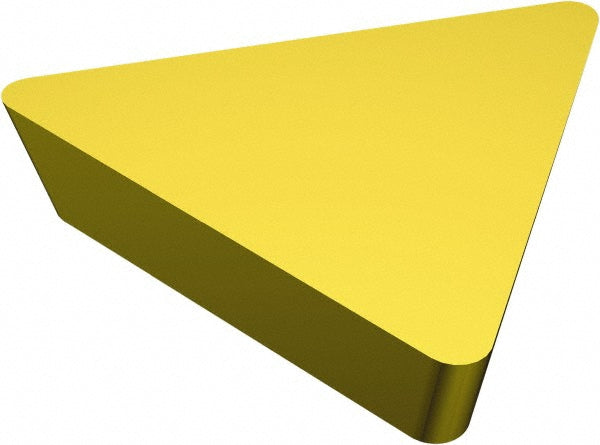

TPUN 16 03 08 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755152
MFR# 5755152ISO/ANSI# TPUN 16 03 08 235
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755152 is a TPUN 16 03 08 235 carbide indexable insert, grade 235, TiCN coated.
Specifications
Chip breakerN
Clearance codeP
Coating finishTiCN
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPUN
Insert thickness in1/8
Iso codeTPUN 16 03 08 235
Length range0.6000 - 0.6500
Manufacturer grade235
Relief angle11
Tolerance codeU
