Sandvik Coromant

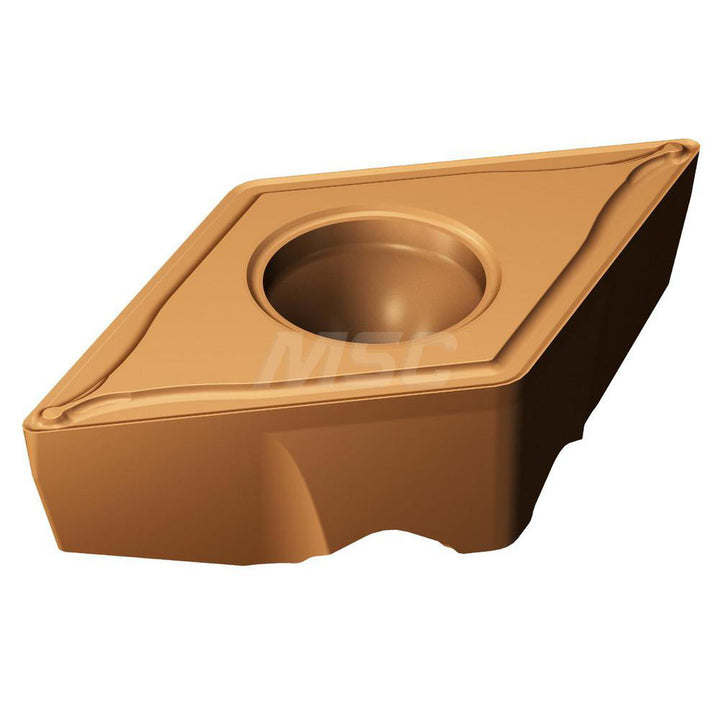

TRDC1312M1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755184
MFR# 5755184ISO/ANSI# TRDC1312M1125Series CoroTurn TR
$27.17List $34.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755184 is a TRDC1312M1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.1457
Inscribed circle0.4331
Insert handNeutral
Insert holding methodScrew
Insert length0.5118
Insert materialCarbide
Insert shapeDiamond
Insert size code1312
Insert styleTRDC
Insert thickness0.2175
Iso codeTRDC1312M1125
Length range0.5000 - 0.6000
Manufacturers catalog number5755184
Manufacturer grade1125
Maximum depth of cut0.4646
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Wiper edgeNo
