Sandvik Coromant

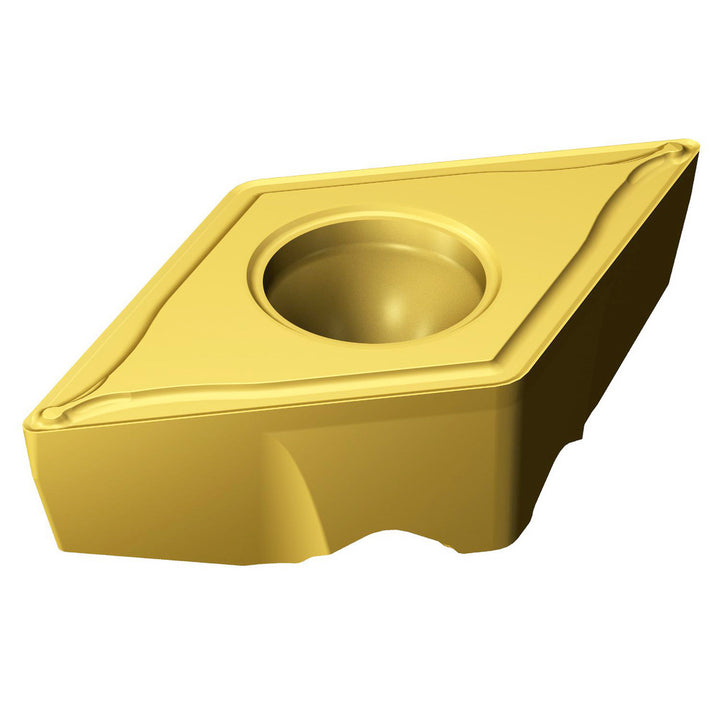

TRDC1308F2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755202
MFR# 5755202ISO/ANSI# TRDC1308F2025Series CoroTurn TR
$21.44List $27.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755202 is a TRDC1308F2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1457
Inscribed circle0.4331
Insert handNeutral
Insert holding methodScrew
Insert length0.5118
Insert materialCarbide
Insert shapeDiamond
Insert size code1308
Insert styleTRDC
Insert thickness0.2175
Iso codeTRDC1308F2025
Length range0.5000 - 0.6000
Manufacturers catalog number5755202
Manufacturer grade2025
Maximum depth of cut0.4803
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Wiper edgeNo
