Sandvik Coromant
TR-DC1308-M 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755241
MFR# 5755241ISO/ANSI# TR-DC1308-M 2025Series CoroTurn TR
$21.59List $27.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description

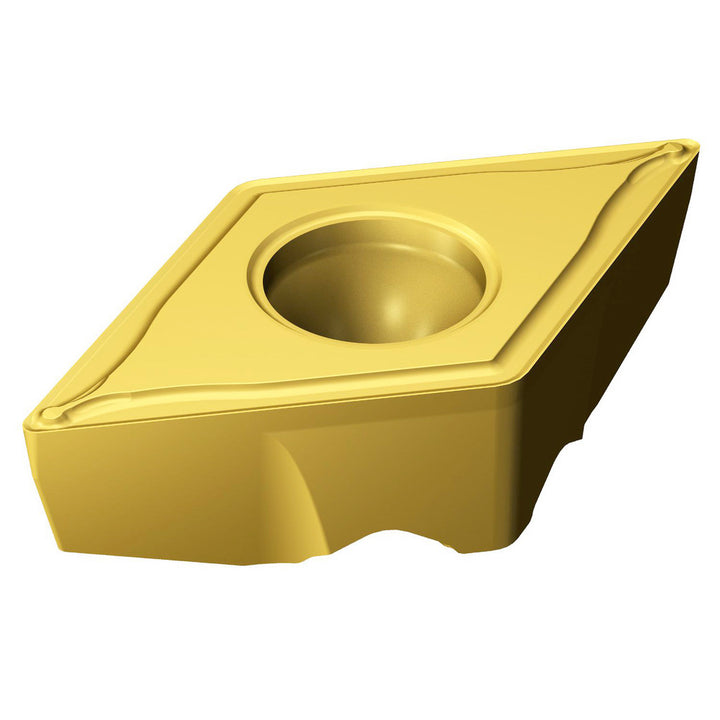

The Sandvik Coromant 5755241 is a TR-DC1308-M 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1457
Inscribed circle0.4331
Insert handNeutral
Insert holding methodScrew
Insert length0.4803
Insert materialCarbide
Insert shapeDiamond
Insert size code1308
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1308-M 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Wiper edgeNo
