Sandvik Coromant

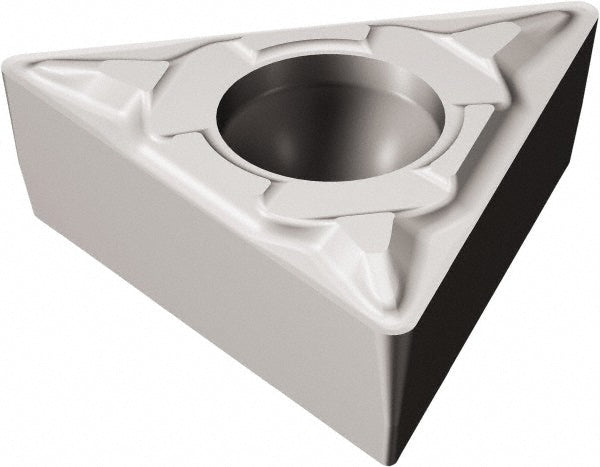

TPMT 09 02 04-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755273
MFR# 5755273ISO/ANSI# TPMT 09 02 04-PF 5015Series CoroTurn 111
$14.60List $18.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5755273 is a TPMT 09 02 04-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3740
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT 09 02 04-PF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
