Sandvik Coromant

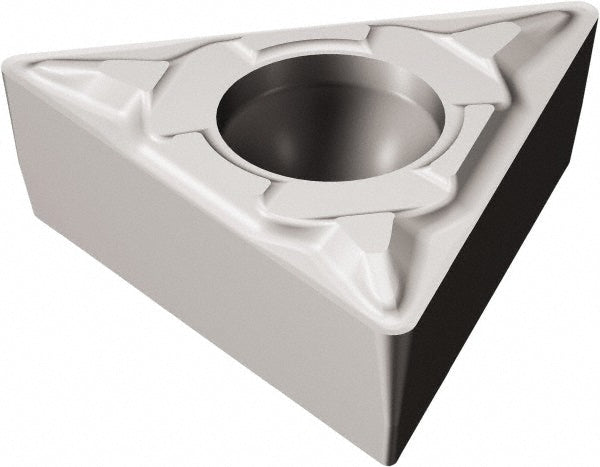

TPMT 06 T1 04-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5755280
MFR# 5755280ISO/ANSI# TPMT 06 T1 04-PF 5015Series CoroTurn 111
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5755280 is a TPMT 06 T1 04-PF 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
ChipbreakerPF
Coating processUncoated
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCermet
Insert shapeTriangle
Insert size code1.21.21
Insert styleTPMT
Iso codeTPMT 06 T1 04-PF 5015
Length0.2598
Manufacturers catalog number5755280
Manufacturer grade5015
Maximum depth of cut0.2441
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
