Sandvik Coromant

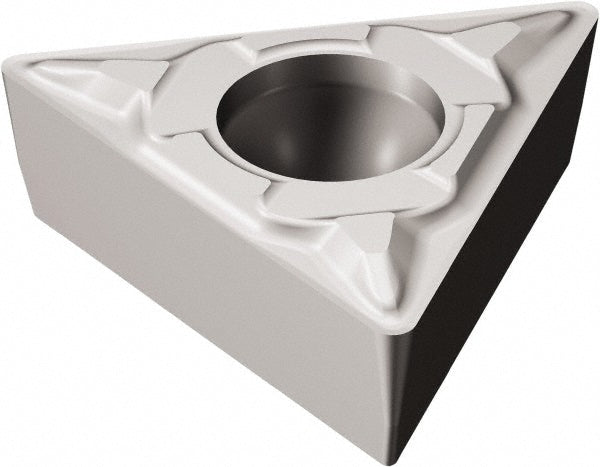

TPMT 06 T1 02-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755296
MFR# 5755296ISO/ANSI# TPMT 06 T1 02-PF 5015Series CoroTurn 111
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5755296 is a TPMT 06 T1 02-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeP
Coating processUncoated
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.2519
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTPMT
Insert thickness in5/64
Iso codeTPMT 06 T1 02-PF 5015
Length range0.0000 - 0.3000
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
