Sandvik Coromant

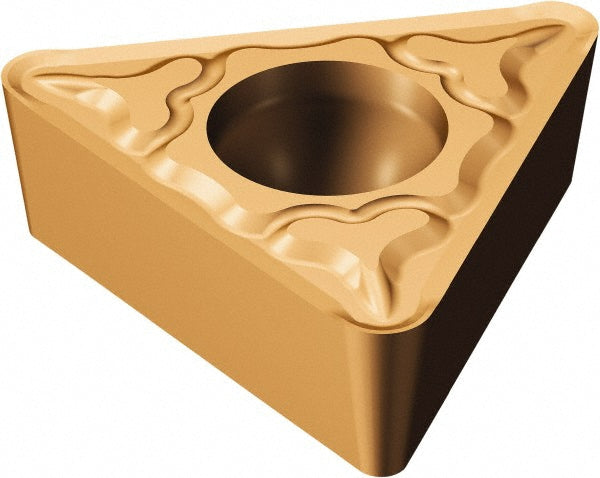

TPMT 06 T1 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755301
MFR# 5755301ISO/ANSI# TPMT 06 T1 04-MF 1125Series CoroTurn 111
$14.44List $18.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755301 is a TPMT 06 T1 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
ChipbreakerMF
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.21
Insert styleTPMT
Iso codeTPMT 06 T1 04-MF 1125
Length0.2598
Manufacturers catalog number5755301
Manufacturer grade1125
Maximum depth of cut0.2441
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
