Sandvik Coromant

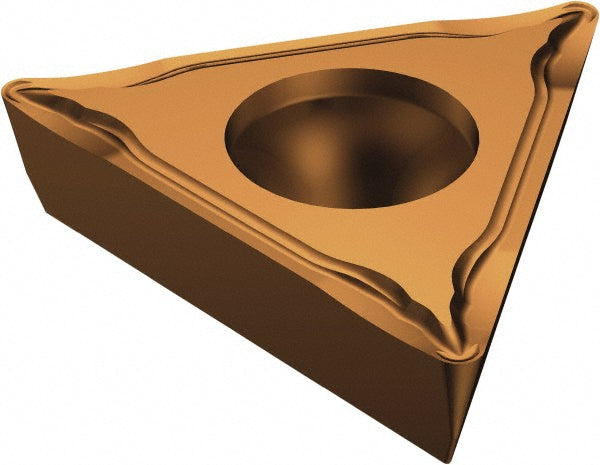

TPMT 22 04 08-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755341
MFR# 5755341ISO/ANSI# TPMT 22 04 08-UM 1125Series CoroTurn 107
$29.09List $37.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755341 is a TPMT 22 04 08-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8345
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTPMT
Insert thickness in3/16
Iso codeTPMT 22 04 08-UM 1125
Length range0.7000 - 10.0000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
