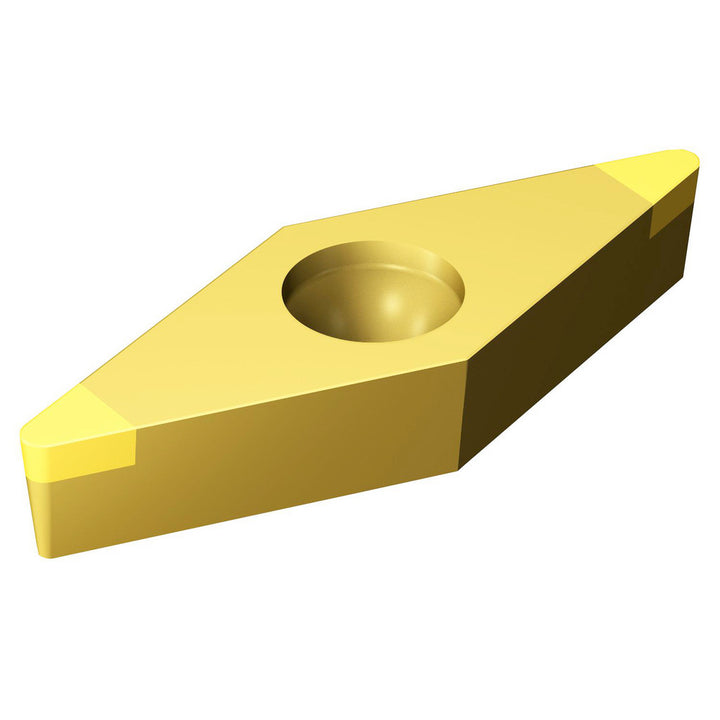

VBGW160404S01020F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5755381
MFR# 5755381ISO/ANSI# VBGW160404S01020F 7015Series CoroTurn 107
$94.31List $120.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5755381 is a VBGW160404S01020F 7015 carbide indexable insert, grade 7015, TiN coated. Suited for hard material.
Specifications
Chip breakerW
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1181
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBGW
Insert thickness in3/16
Iso codeVBGW160404S01020F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle5
Tolerance codeG
Wiper edgeNo
