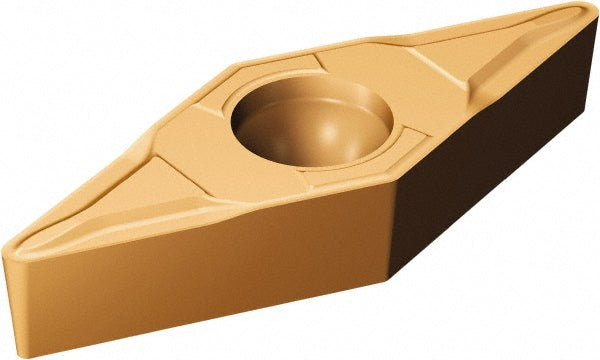

VBMT 11 03 02-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755521

Sandvik Coromant

VBMT 11 03 02-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755521

MFR# 5755521ISO/ANSI# VBMT 11 03 02-MF 1115Series CoroTurn 107

$29.74List $37.48 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5755521 is a VBMT 11 03 02-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code220
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 02-MF 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
