Sandvik Coromant

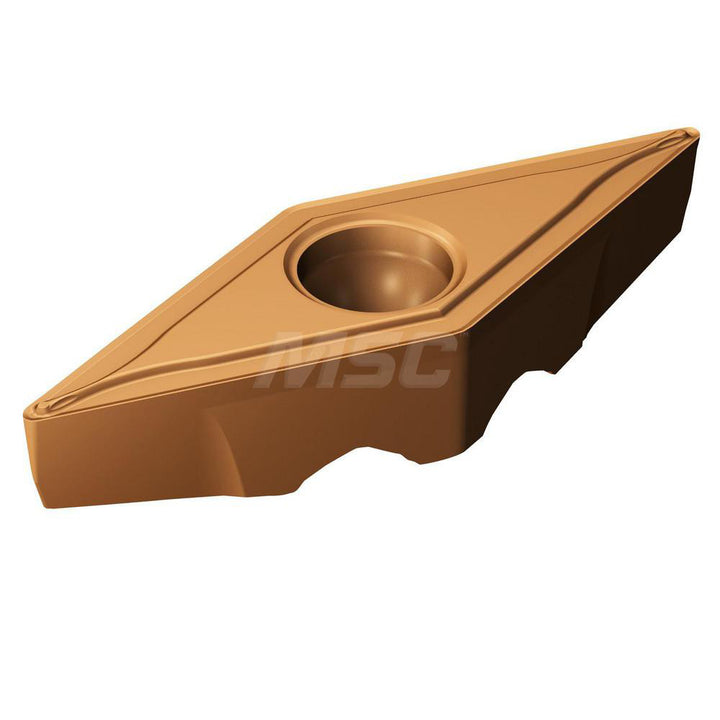

TR-VB1308-F 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755527
MFR# 5755527ISO/ANSI# TR-VB1308-F 1125Series CoroTurn TR
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755527 is a TR-VB1308-F 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length0.4803
Insert materialCarbide
Insert shapeDiamond
Insert size code1308
Insert styleTRVB
Insert thickness0.1782
Iso codeTR-VB1308-F 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Wiper edgeNo
