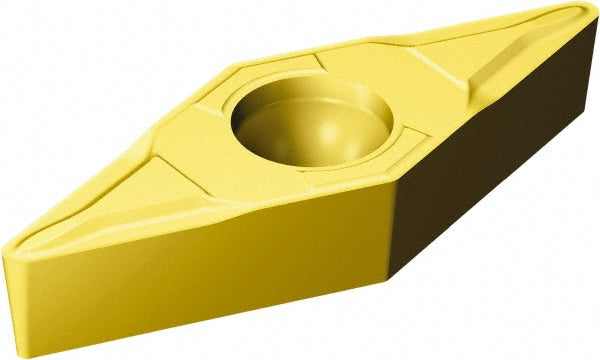

VBMT 11 03 04-MF 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755605

Sandvik Coromant

VBMT 11 03 04-MF 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755605

MFR# 5755605ISO/ANSI# VBMT110304Series CoroTurn 107

$23.40List $30.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade2025
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5755605 is a VBMT 11 03 04-MF 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeVBMT221
Ansi size code221
Chip breakerMF
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4201
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 04-MF 2025
Iso insert codeVBMT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Side clearancePositive
Tolerance codeM
Wiper edgeNo
