Sandvik Coromant

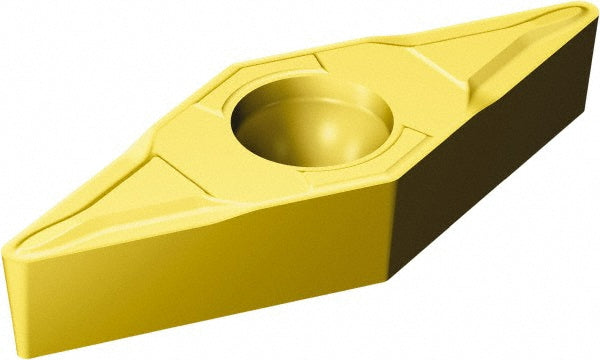

VBMT 16 04 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5755653
MFR# 5755653ISO/ANSI# VBMT 16 04 04-MF 2015Series CoroTurn 107
$23.98List $30.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755653 is a VBMT 16 04 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-MF 2015
Length range0.6000 - 0.6500
Manufacturer grade2015
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
