Sandvik Coromant

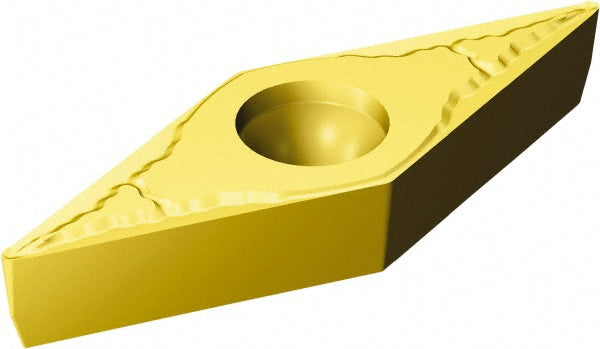

VBMT 16 04 04-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5755669
MFR# 5755669ISO/ANSI# VBMT 16 04 04-MM 2035Series CoroTurn 107
$23.39List $30.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755669 is a VBMT 16 04 04-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-MM 2035
Length range0.6500 - 0.7000
Manufacturers catalog number5755669
Manufacturer grade2035
Maximum depth of cut0.6382
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
