Sandvik Coromant

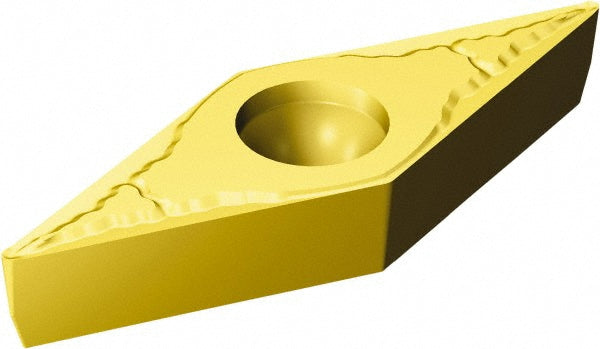

VBMT 16 04 08-MM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5755713
MFR# 5755713ISO/ANSI# VBMT 16 04 08-MM 2015Series CoroTurn 107
$30.95List $39.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755713 is a VBMT 16 04 08-MM 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeB
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-MM 2015
Length range0.6500 - 0.7000
Manufacturers catalog number5755713
Manufacturer grade2015
Maximum depth of cut0.6224
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
