Sandvik Coromant

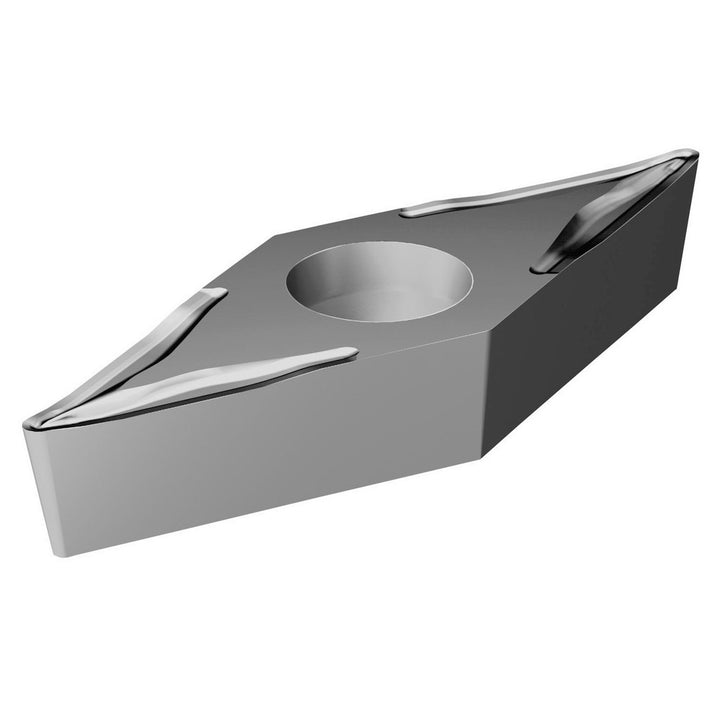

VBMT 16 04 08-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5755745
MFR# 5755745ISO/ANSI# VBMT 16 04 08-UM H13ASeries CoroTurn 107
$19.66List $25.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755745 is a VBMT 16 04 08-UM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeB
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-UM H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
