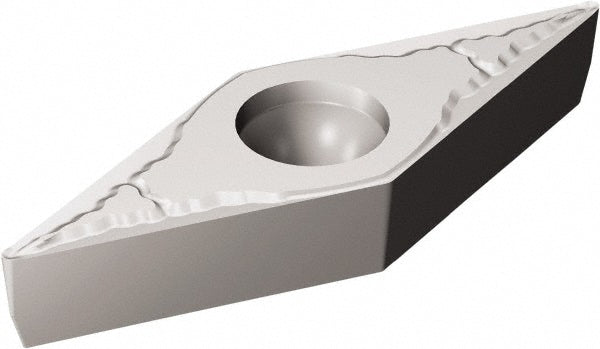

VBMT 16 04 08-PM 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755754
MFR# 5755754ISO/ANSI# VBMT 16 04 08-PM 5015Series CoroTurn 107
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5755754 is a VBMT 16 04 08-PM 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPM
Clearance codeB
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-PM 5015
Length range0.6000 - 0.6500
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
