Sandvik Coromant

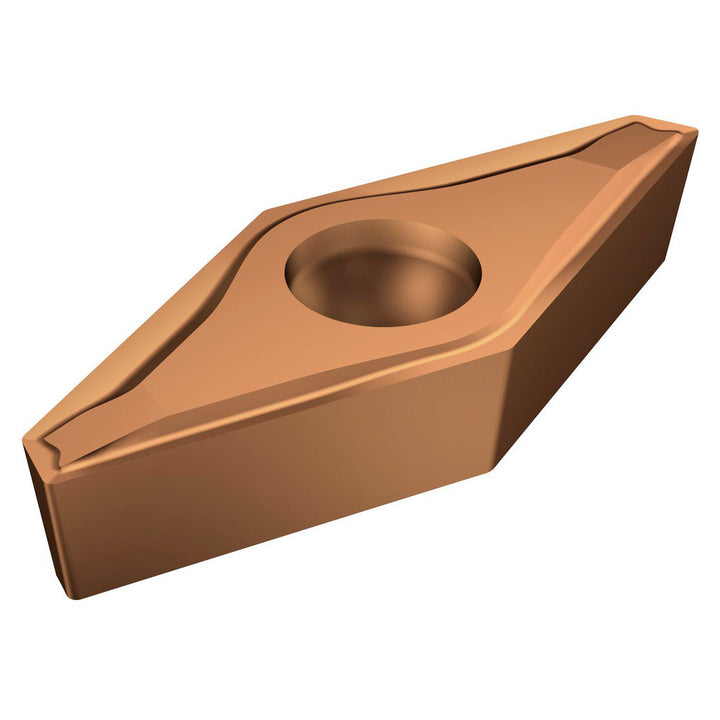

VCEX 11 03 01R-F 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755885
MFR# 5755885ISO/ANSI# VCEX 11 03 01R-F 1115Series CoroTurn 107
$54.84List $69.12
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755885 is a VCEX 11 03 01R-F 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4319
Insert materialCarbide
Insert shapeDiamond
Insert size code2203
Insert styleVCEX
Insert thickness in1/8
Iso codeVCEX 11 03 01R-F 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeE
Wiper edgeYes
