Sandvik Coromant

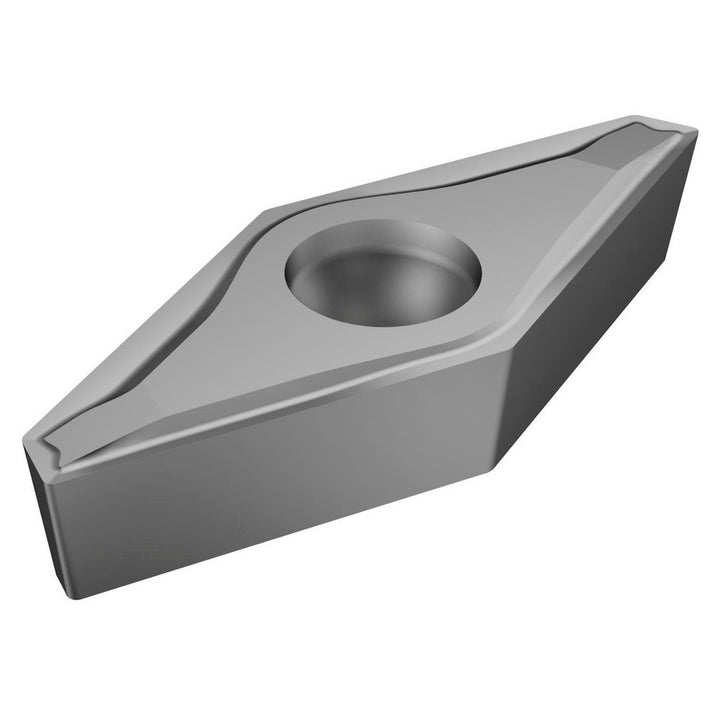

VCEX 11 03 01R-F 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755887
MFR# 5755887ISO/ANSI# VCEX 11 03 01R-F 5015Series CoroTurn 107
$40.93List $52.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5755887 is a VCEX 11 03 01R-F 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerF
Clearance codeC
Corner radius0.0039
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4319
Insert materialCarbide
Insert shapeDiamond
Insert size code2203
Insert styleVCEX
Insert thickness in1/8
Iso codeVCEX 11 03 01R-F 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeE
Wiper edgeYes
