Sandvik Coromant

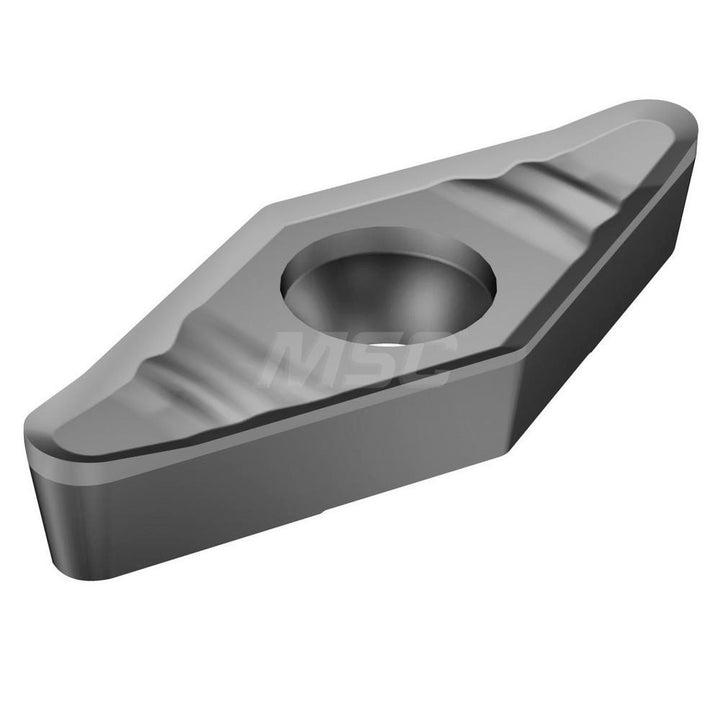

VCGX 16 04 04-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5755915
MFR# 5755915ISO/ANSI# VCGX 16 04 04-AL H10Series CoroTurn 107
$27.71List $35.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5755915 is a VCGX 16 04 04-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerXF
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVCGX
Insert thickness in3/16
Iso codeVCGX 16 04 04-AL H10
Length range0.6000 - 0.6500
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
