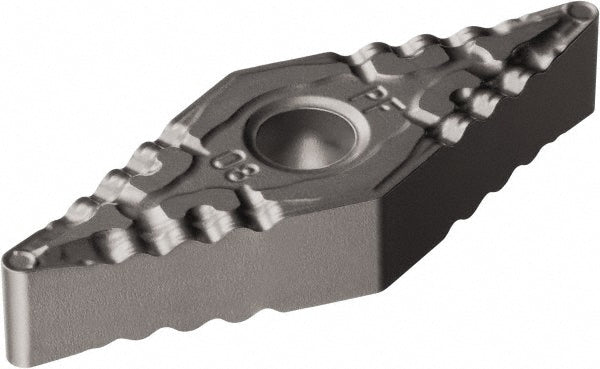

VNMG 16 04 04-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755975

Sandvik Coromant

VNMG 16 04 04-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5755975

MFR# 5755975ISO/ANSI# VNMG 16 04 04-PF 5015Series T-Max P

$35.99List $45.36 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide

Description

The Sandvik Coromant 5755975 is a VNMG 16 04 04-PF 5015 carbide indexable insert, grade 5015. Suited for steel.

Specifications

Chip breakerPF
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-PF 5015
Length range0.6000 - 0.6500
Manufacturer grade5015
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
