Sandvik Coromant

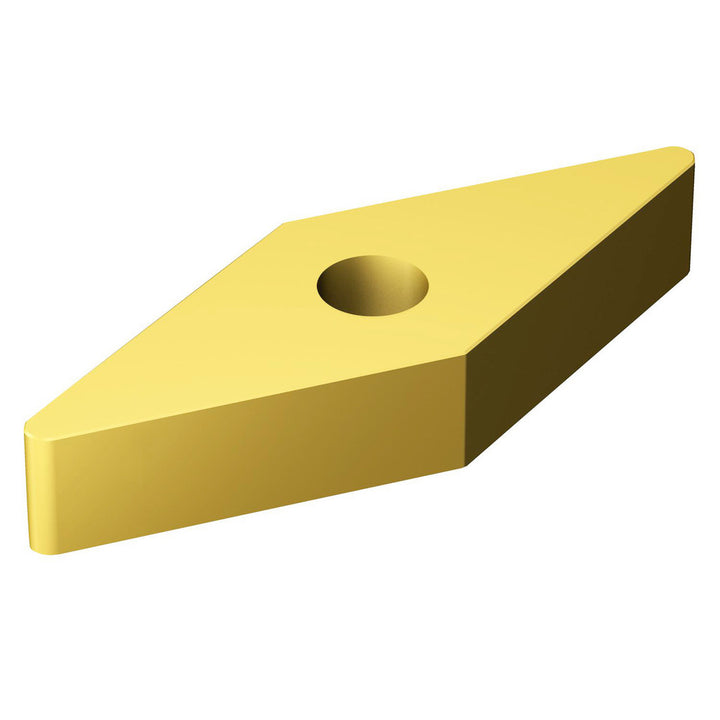

VNGA160404S01525 6050 Ceramic Insert, Grade 6050, TiN - Sandvik Coromant 5756005
MFR# 5756005ISO/ANSI# VNGA160404S01525 6050Series T-Max P
$38.10List $48.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade6050
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5756005 is a VNGA160404S01525 6050 ceramic indexable insert, grade 6050, TiN coated. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6380
Insert materialCeramic
Insert shapeDiamond
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160404S01525 6050
Length range0.6000 - 0.6500
Manufacturer grade6050
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
