Sandvik Coromant

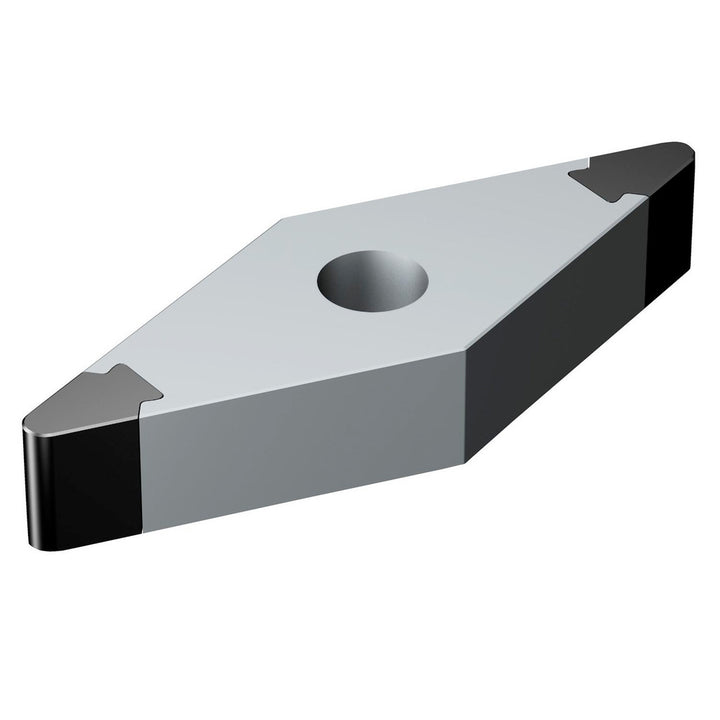

VNGA160408S01030A 7025 Carbide Insert, Grade 7025 - Sandvik Coromant 5756010
MFR# 5756010ISO/ANSI# VNGA160408S01030A 7025Series T-Max P
$175.15List $224.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7025
MaterialCarbide
Description
The Sandvik Coromant 5756010 is a VNGA160408S01030A 7025 carbide indexable insert, grade 7025. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1378
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160408S01030A 7025
Length range0.0000 - 0.3000
Manufacturer grade7025
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
