Sandvik Coromant

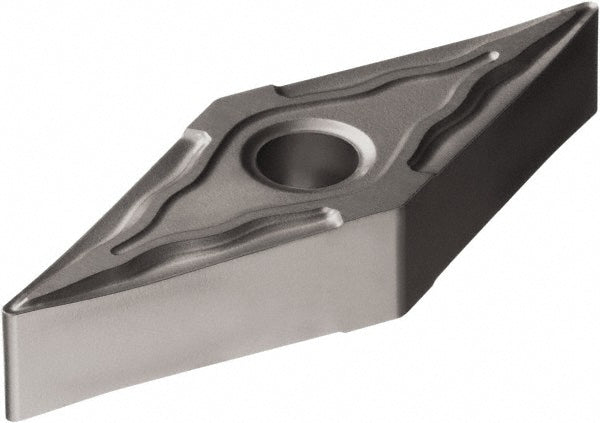

VNMG 16 04 08-MF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5756037
MFR# 5756037ISO/ANSI# VNMG 16 04 08-MF 5015Series T-Max P
$32.20List $41.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5756037 is a VNMG 16 04 08-MF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-MF 5015
Length range0.6000 - 0.6500
Manufacturer grade5015
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
