Sandvik Coromant

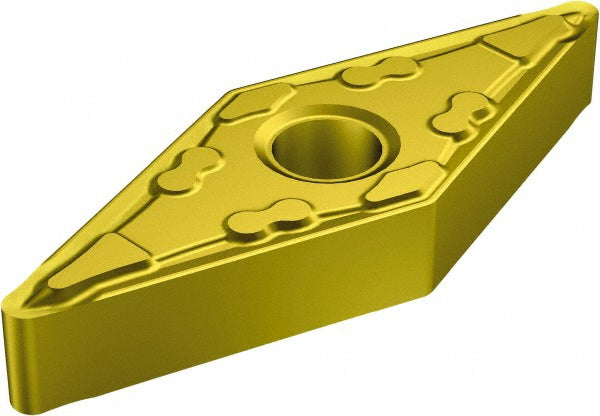

VNMG 16 04 08-MF S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5756050
MFR# 5756050ISO/ANSI# VNMG 16 04 08-MF S05FSeries T-Max P
$37.22List $47.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756050 is a VNMG 16 04 08-MF S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-MF S05F
Length range0.6000 - 0.6500
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
