Sandvik Coromant

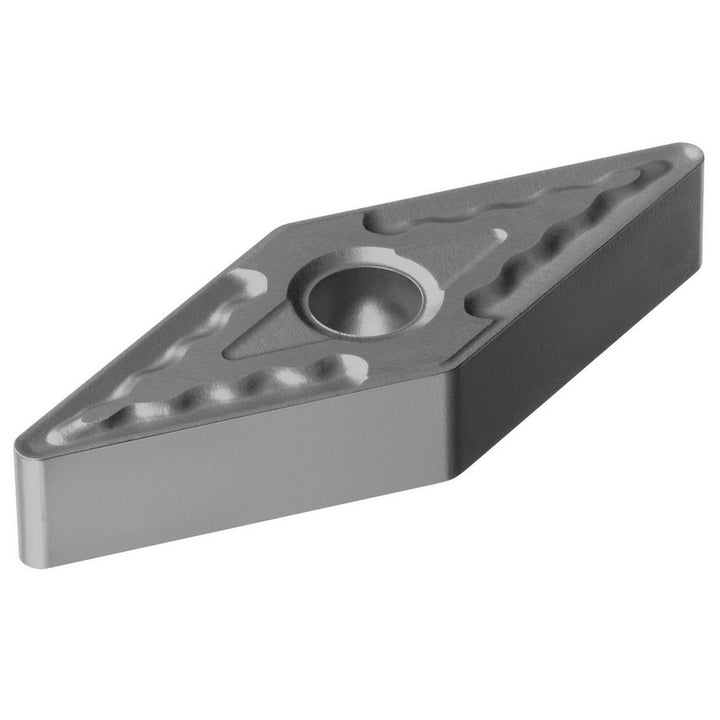

VNMG 16 04 08-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5756058
MFR# 5756058ISO/ANSI# VNMG 16 04 08-QM H13ASeries T-Max P
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5756058 is a VNMG 16 04 08-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-QM H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
