Sandvik Coromant

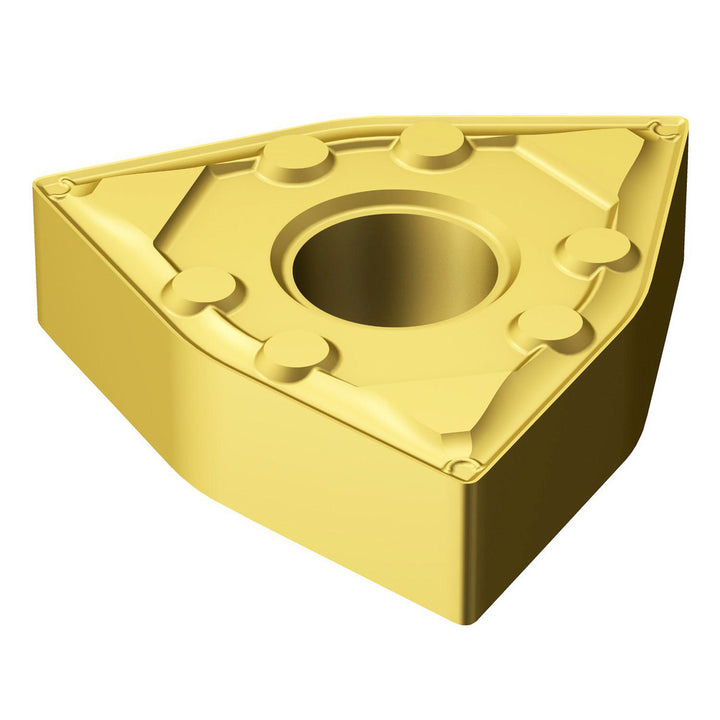

WNMG060404WF2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756284
MFR# 5756284ISO/ANSI# WNMG060404Series T-Max P
$18.86List $24.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756284 is a WNMG060404WF2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeWNMG331
Ansi size code331
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404WF2015
Iso insert codeWNMG060404
Iso size code060404
Length range0.0000 - 0.3000
Manufacturers catalog number5756284
Manufacturer grade2015
Maximum depth of cut0.2409
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeYes
