Sandvik Coromant

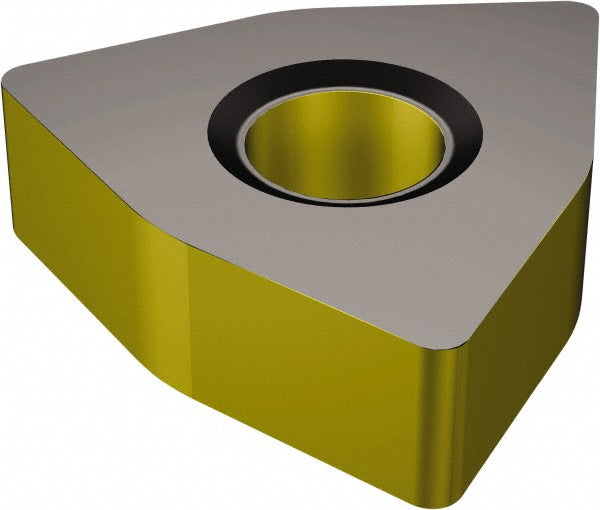

WNMA 08 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5756292
MFR# 5756292ISO/ANSI# WNMA080402Series T-Max P
$23.61List $29.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756292 is a WNMA 08 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeWNMA432
Ansi size code432
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMA
Insert thickness in3/16
Iso codeWNMA 08 04 08-KR 3210
Iso insert codeWNMA080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturers catalog number5756292
Manufacturer grade3210
Maximum depth of cut0.3106
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
