Sandvik Coromant
WNMG 06 04 04-WF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5756313
MFR# 5756313ISO/ANSI# WNMG 06 04 04-WF 1525Series T-Max P
$18.02List $23.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756313 is a WNMG 06 04 04-WF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.

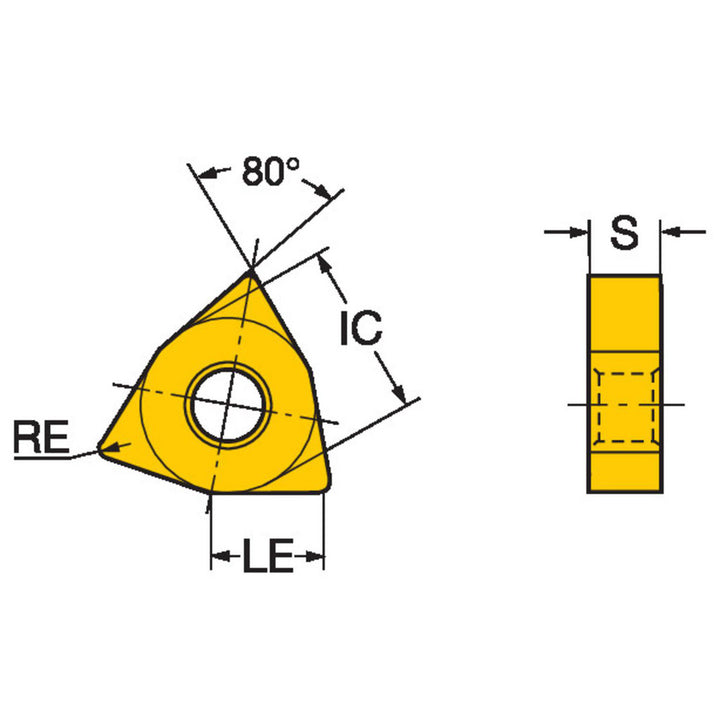

Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2407
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-WF 1525
Length range0.0000 - 0.3000
Manufacturer grade1525
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
