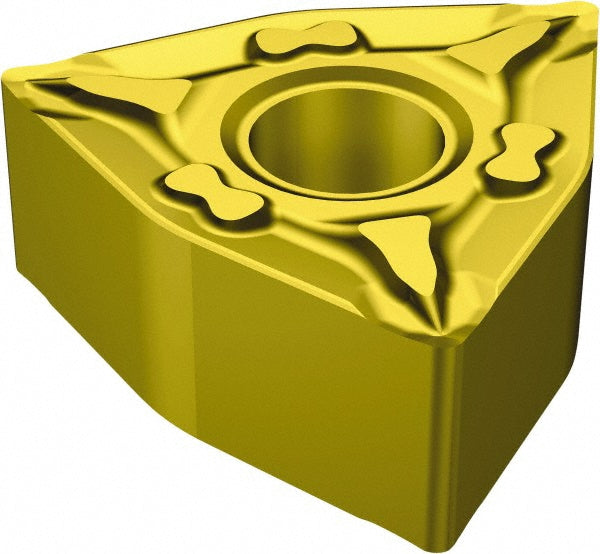

WNMG 06 04 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756325

Sandvik Coromant

WNMG 06 04 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756325

MFR# 5756325ISO/ANSI# WNMG060404Series T-Max P

$16.28List $20.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
Grade2015
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5756325 is a WNMG 06 04 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG331
Ansi size code331
Chip breakerMF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-MF 2015
Iso insert codeWNMG060404
Iso size code060404
Length range0.0000 - 0.3000
Manufacturers catalog number5756325
Manufacturer grade2015
Maximum depth of cut0.2409
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
