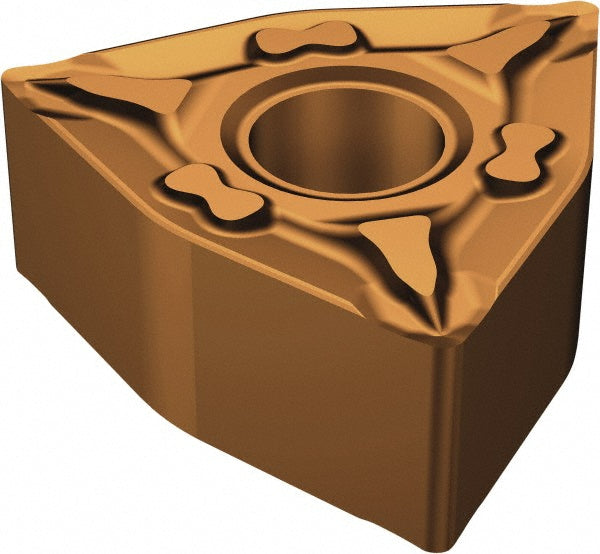

WNMG 06 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5756343

Sandvik Coromant

WNMG 06 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5756343

MFR# 5756343ISO/ANSI# WNMG 06 04 08-MF 1125Series T-Max P

$19.29List $24.30 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5756343 is a WNMG 06 04 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2250
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-MF 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
