Sandvik Coromant

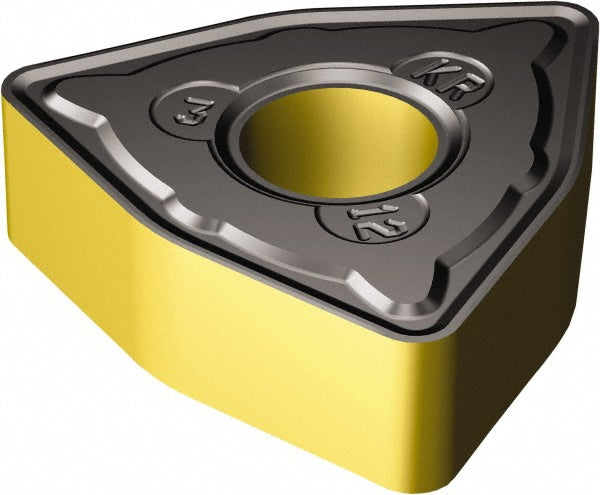

WNMG060408KR3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5756366
MFR# 5756366ISO/ANSI# WNMG060408Series T-Max P
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756366 is a WNMG060408KR3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Ansi insert codeWNMG332
Ansi size code332
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408KR3210
Iso insert codeWNMG060408
Iso size code060408
Length range0.0000 - 0.3000
Manufacturers catalog number5756366
Manufacturer grade3210
Maximum depth of cut0.2252
Relief angle0
Side clearanceNegative
Tolerance codeM
