Sandvik Coromant

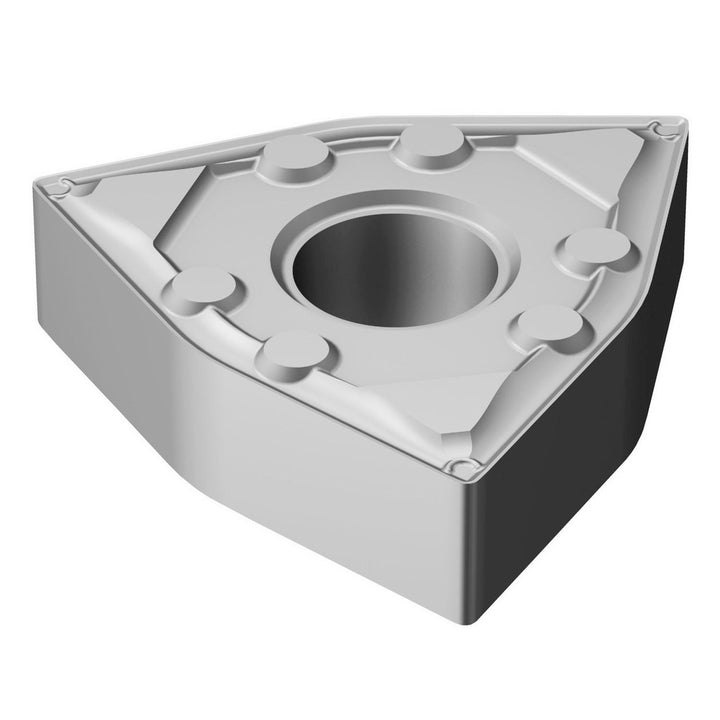

WNMG 06 04 08-WF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5756433
MFR# 5756433ISO/ANSI# WNMG 06 04 08-WF 5015Series T-Max P
$18.02List $23.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5756433 is a WNMG 06 04 08-WF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2250
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-WF 5015
Length range0.0000 - 0.3000
Manufacturer grade5015
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
