Sandvik Coromant

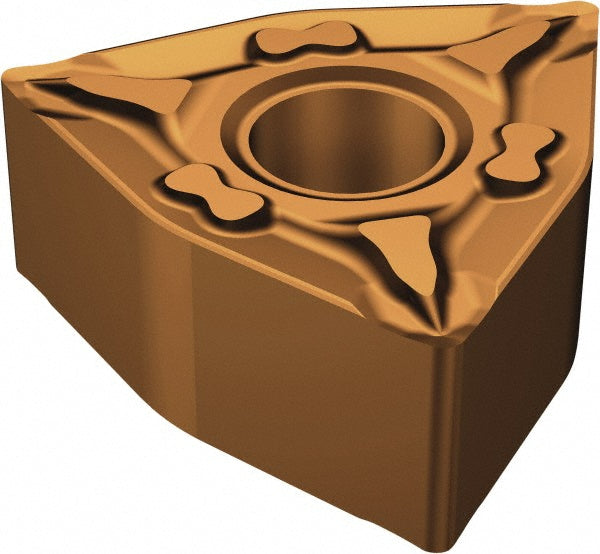

WNMG 08 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5756486
MFR# 5756486ISO/ANSI# WNMG 08 04 08-MF 1125Series T-Max P
$26.05List $32.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756486 is a WNMG 08 04 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-MF 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
