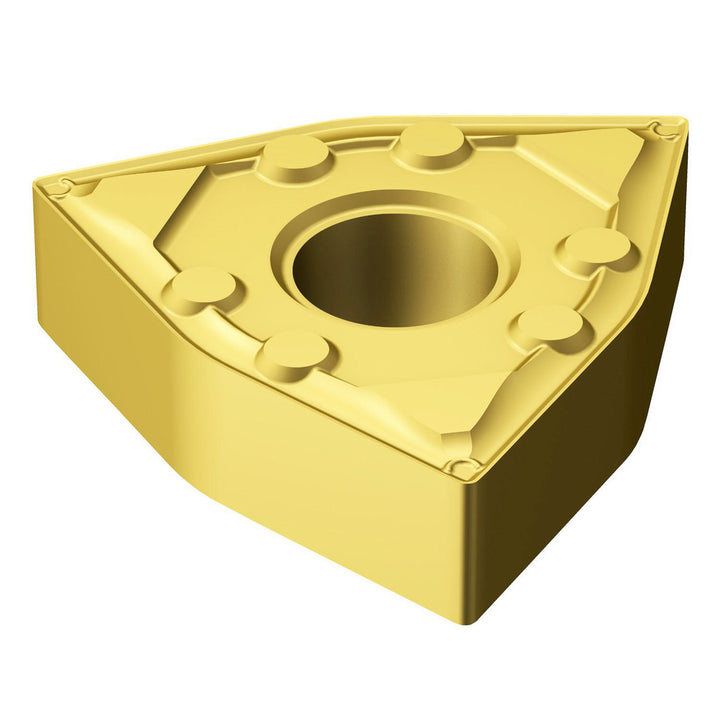

WNMG 08 04 04-WF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756523

Sandvik Coromant

WNMG 08 04 04-WF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756523

MFR# 5756523ISO/ANSI# WNMG080404Series T-Max P

$23.39List $30.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade2015
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5756523 is a WNMG 08 04 04-WF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3263
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-WF 2015
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturer grade2015
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeYes
