Sandvik Coromant

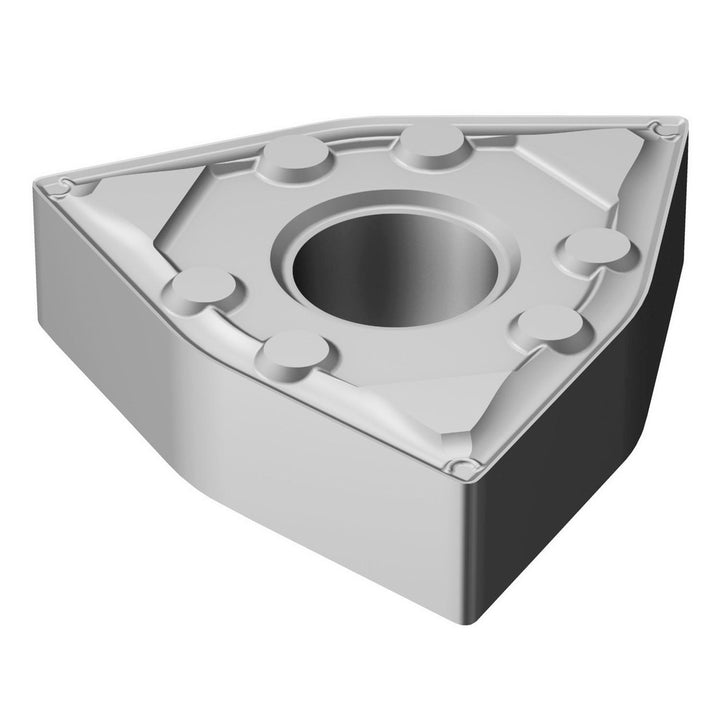

WNMG 08 04 04-WF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5756554
MFR# 5756554ISO/ANSI# WNMG 08 04 04-WF 5015Series T-Max P
$22.44List $28.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5756554 is a WNMG 08 04 04-WF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Corner radius in1/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3263
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-WF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
