WNMG 08 04 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5756560

Sandvik Coromant

WNMG 08 04 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5756560

MFR# 5756560ISO/ANSI# WNMG 08 04 08-MR 2025Series T-Max P

$23.21List $29.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
Grade2025
MaterialCarbide
CoatingTiCN

Description

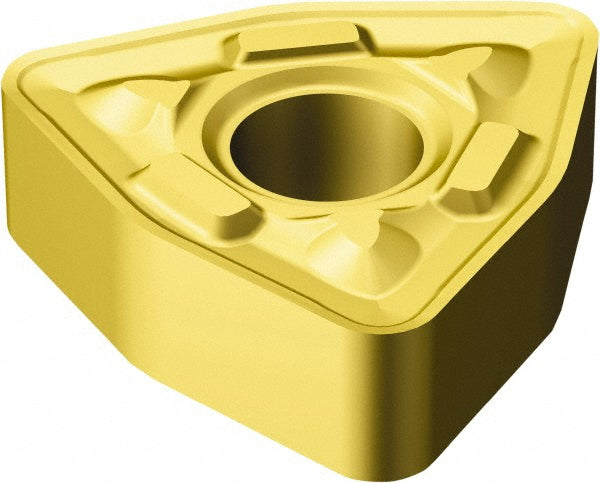

The Sandvik Coromant 5756560 is a WNMG 08 04 08-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-MR 2025
Length range0.3000 - 0.4000
Manufacturer grade2025
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
