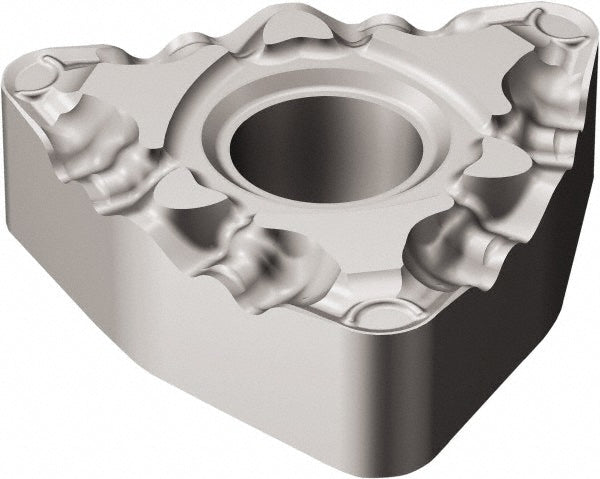

WNMG 08 04 08-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5756601

Sandvik Coromant

WNMG 08 04 08-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5756601

MFR# 5756601ISO/ANSI# WNMG 08 04 08-PF 5015Series T-Max P

$21.82List $27.49 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
Grade5015
MaterialCermet

Description

The Sandvik Coromant 5756601 is a WNMG 08 04 08-PF 5015 cermet indexable insert, grade 5015. Suited for steel.

Specifications

Chip breakerPF
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCermet
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-PF 5015
Length range0.3000 - 0.4000
Manufacturers catalog number5756601
Manufacturer grade5015
Maximum depth of cut0.3106
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
